| Material: | |
|---|---|
| Flute: | |
| Coating: | |
| Quantity: | |
END MILL
SHOWIRK
SHOWIRK Carbide End Mill Cutters used 100% orignal raw material carbide rod,working on mould&die steel,stainless steel and some other CNC milling work.

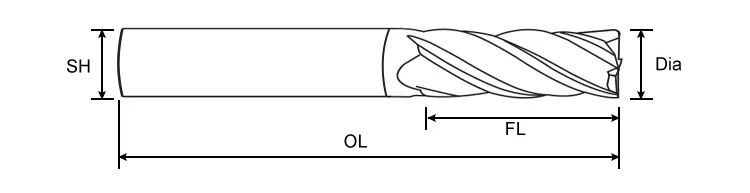

| Dia | FL | SH | OL | Pack Qty | Code |
| 1 | 3 | 4 | 50 | 1 | 55EM4F150 |
| 2 | 6 | 4 | 50 | 1 | 55EM4F250 |
| 3 | 8 | 3 | 50 | 1 | 55EM4F350 |
| 4 | 10 | 4 | 50 | 1 | 55EM4F450 |
| 5 | 13 | 5 | 50 | 1 | 55EM4F550 |
| 6 | 15 | 6 | 50 | 1 | 55EM4F650 |
| 8 | 20 | 8 | 60 | 1 | 55EM4F860 |
| 3 | 12 | 3 | 75 | 1 | 55EM4F375 |
| 4 | 15 | 4 | 75 | 1 | 55EM4F475 |
| 5 | 20 | 5 | 75 | 1 | 55EM4F575 |
| 6 | 20 | 6 | 75 | 1 | 55EM4F675 |
| 8 | 25 | 8 | 75 | 1 | 55EM4F875 |
| 10 | 25 | 10 | 75 | 1 | 55EM4F1075 |
| 12 | 30 | 12 | 75 | 1 | 55EM4F1275 |
| 3 | 12 | 3 | 100 | 1 | 55EM4F3100 |
| 4 | 16 | 4 | 100 | 1 | 55EM4F4100 |
| 5 | 20 | 5 | 100 | 1 | 55EM4F5100 |
| 6 | 25 | 6 | 100 | 1 | 55EM4F6100 |
| 8 | 35 | 8 | 100 | 1 | 55EM4F8100 |
| 10 | 40 | 10 | 100 | 1 | 55EM4F10100 |
| 12 | 45 | 12 | 100 | 1 | 55EM4F12100 |
| 14 | 45 | 14 | 100 | 1 | 55EM4F14100 |
| 16 | 45 | 16 | 100 | 1 | 55EM4F16100 |
| 18 | 45 | 18 | 100 | 1 | 55EM4F18100 |
| 20 | 45 | 20 | 100 | 1 | 55EM4F20100 |
| 6 | 25 | 6 | 150 | 1 | 55EM4F6150 |
| 8 | 35 | 8 | 150 | 1 | 55EM4F8150 |
| 10 | 45 | 10 | 150 | 1 | 55EM4F10150 |
| 12 | 45 | 12 | 150 | 1 | 55EM4F12150 |
| 14 | 45 | 14 | 150 | 1 | 55EM4F14150 |
| 16 | 50 | 16 | 150 | 1 | 55EM4F16150 |
| 18 | 50 | 18 | 150 | 1 | 55EM4F18150 |
| 20 | 55 | 20 | 150 | 1 | 55EM4F20150 |
SHOWIRK Carbide End Mill Cutters used 100% orignal raw material carbide rod,working on mould&die steel,stainless steel and some other CNC milling work.
| Dia | FL | SH | OL | Pack Qty | Code |
| 1 | 3 | 4 | 50 | 1 | 55EM4F150 |
| 2 | 6 | 4 | 50 | 1 | 55EM4F250 |
| 3 | 8 | 3 | 50 | 1 | 55EM4F350 |
| 4 | 10 | 4 | 50 | 1 | 55EM4F450 |
| 5 | 13 | 5 | 50 | 1 | 55EM4F550 |
| 6 | 15 | 6 | 50 | 1 | 55EM4F650 |
| 8 | 20 | 8 | 60 | 1 | 55EM4F860 |
| 3 | 12 | 3 | 75 | 1 | 55EM4F375 |
| 4 | 15 | 4 | 75 | 1 | 55EM4F475 |
| 5 | 20 | 5 | 75 | 1 | 55EM4F575 |
| 6 | 20 | 6 | 75 | 1 | 55EM4F675 |
| 8 | 25 | 8 | 75 | 1 | 55EM4F875 |
| 10 | 25 | 10 | 75 | 1 | 55EM4F1075 |
| 12 | 30 | 12 | 75 | 1 | 55EM4F1275 |
| 3 | 12 | 3 | 100 | 1 | 55EM4F3100 |
| 4 | 16 | 4 | 100 | 1 | 55EM4F4100 |
| 5 | 20 | 5 | 100 | 1 | 55EM4F5100 |
| 6 | 25 | 6 | 100 | 1 | 55EM4F6100 |
| 8 | 35 | 8 | 100 | 1 | 55EM4F8100 |
| 10 | 40 | 10 | 100 | 1 | 55EM4F10100 |
| 12 | 45 | 12 | 100 | 1 | 55EM4F12100 |
| 14 | 45 | 14 | 100 | 1 | 55EM4F14100 |
| 16 | 45 | 16 | 100 | 1 | 55EM4F16100 |
| 18 | 45 | 18 | 100 | 1 | 55EM4F18100 |
| 20 | 45 | 20 | 100 | 1 | 55EM4F20100 |
| 6 | 25 | 6 | 150 | 1 | 55EM4F6150 |
| 8 | 35 | 8 | 150 | 1 | 55EM4F8150 |
| 10 | 45 | 10 | 150 | 1 | 55EM4F10150 |
| 12 | 45 | 12 | 150 | 1 | 55EM4F12150 |
| 14 | 45 | 14 | 150 | 1 | 55EM4F14150 |
| 16 | 50 | 16 | 150 | 1 | 55EM4F16150 |
| 18 | 50 | 18 | 150 | 1 | 55EM4F18150 |
| 20 | 55 | 20 | 150 | 1 | 55EM4F20150 |
