Indexable Countersink For Metal With Pilot Cutter

SHOWIRK Countersink used to provide a heavy chamfer in the entrance to a drilled hole.
Countersink Angle have :60 degree,82degree,90 degree,100 degree, 120degree
Material:
HSS
Coating:
Bright Coating
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • Countersink

  • SHOWIRK

Indexable Countersink For Metal With Pilot Cutter

SHOWIRK Countersink used to provide a heavy chamfer in the entrance to a drilled hole.

90 degree

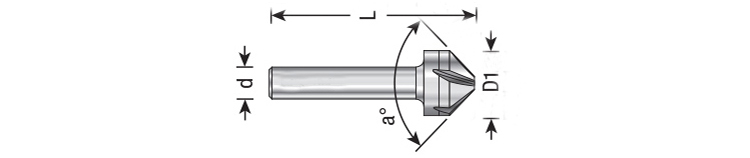

图纸

Specification D1 L d
90 Degree Countersink 4.3mm 4.3 40 4
90 Degree Countersink 4.8mm 4.8 40 4
90 Degree Countersink 5mm 5 40 4
90 Degree Countersink 5.3mm 5.3 40 4
90 Degree Countersink 5.8mm 5.8 45 5
90 Degree Countersink 6mm 6 45 5
90 Degree Countersink 6.3mm 6.3 45 5
90 Degree Countersink 7mm 7 50 6
90 Degree Countersink 7.3mm 7.3 50 6
90 Degree Countersink 8mm 8 50 6
90 Degree Countersink 8.3mm 8.3 50 6
90 Degree Countersink 9.4mm 9.4 50 6
90 Degree Countersink 10mm 10 50 6
90 Degree Countersink 10.4mm 10.4 50 6
90 Degree Countersink 11.5mm 11.5 56 8
90 Degree Countersink 12.4mm 12.4 56 8
90 Degree Countersink 13.4mm 13.4 56 8
90 Degree Countersink 15mm 15 60 10
90 Degree Countersink 16.5mm 16.5 60 10
90 Degree Countersink 19mm 19 60 10
90 Degree Countersink 20.5mm 20.5 63 10
90 Degree Countersink 23mm 23 67 10
90 Degree Countersink 25mm 25 67 10
90 Degree Countersink 26mm 26 71 12
90 Degree Countersink 28mm 28 71 12
90 Degree Countersink 30mm 30 71 12
90 Degree Countersink 31mm 31 71 12
90 Degree Countersink 37mm 37 90 12
90 Degree Countersink 40mm 40 90 15
