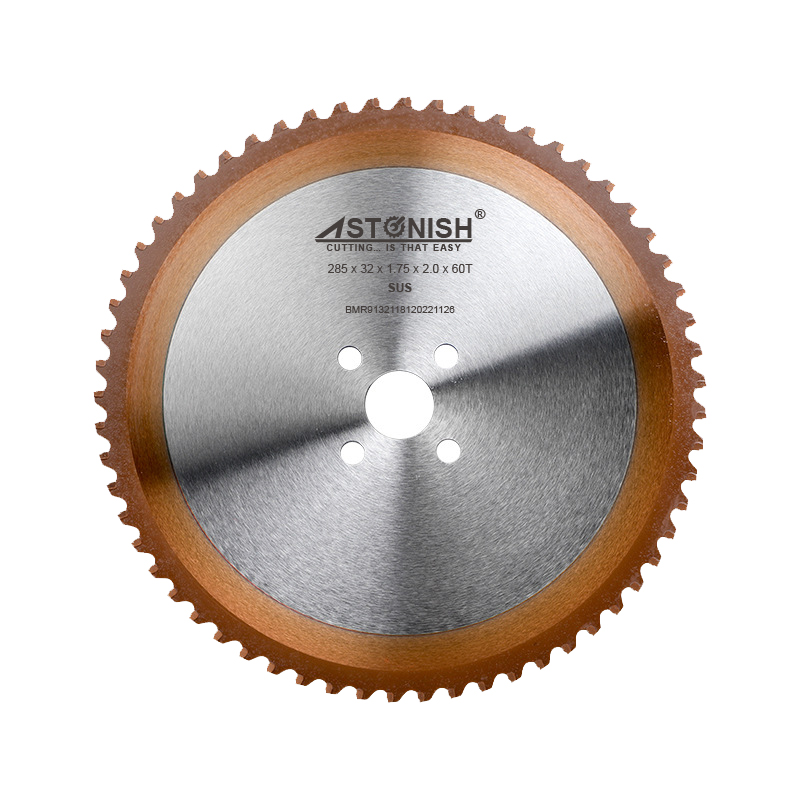

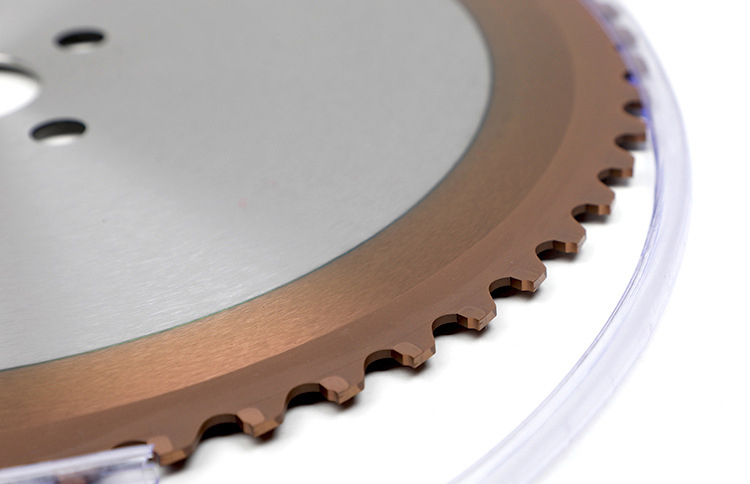

Cold Saw Blade
ASTONISH
PVD Coating will increasing the saw blade wear resisance and hardness. Specially for stainless steels cutting.
ASTONISH Cold Saw Blades used imported SKS-51 Body Materials, the Cermet Tips used SANDVIK brand. All the production lines used high precision grinding machines. To provide best products to customers.
Cutting Materials: Carbon Steel, Alloy Steel, Bearing Steel, Titanium Alloy, Stainless Steel, High Speed Steel, High Tepmerature Alloy.
Matched Equipment: Cold Circular Sawing Machine.
PVD Coating will increasing the saw blade wear resisance and hardness. Specially for stainless steels cutting.
ASTONISH Cold Saw Blades used imported SKS-51 Body Materials, the Cermet Tips used SANDVIK brand. All the production lines used high precision grinding machines. To provide best products to customers.
Cutting Materials: Carbon Steel, Alloy Steel, Bearing Steel, Titanium Alloy, Stainless Steel, High Speed Steel, High Tepmerature Alloy.
Matched Equipment: Cold Circular Sawing Machine.
PVD-TiSiN Industrial Coating for Stainless Steel Cutting
PVD-TiSiN Industrial Coating for Stainless Steel Cutting
Diameter | Tips Thickness | Body Thickness | Bore Size | Teeth |
250mm | 2.0 | 1.7/1.75 | 32 | 60T/72T/80T/100T/120T |
285mm | 2.0 | 1.7/1.75 | 32 | 60T/72T/80T/100T/120T |
315mm | 2.25 | 2.0 | 32 | 60T/72T/80T/100T/120T |
360mm | 2.6 | 2.25 | 40 | 60T/72T/80T/100T/120T |
380mm | 2.6 | 2.25 | 40 | 60T/72T/80T/100T/120T |
460mm | 2.7 | 2.25 | 50 | 60T/72T/80T/100T/120T |
485mm | 2.7 | 2.25 | 50 | 60T/72T/80T/100T/120T |
530mm | 3.0 | 2.5 | 50 | 60T/72T/80T/100T/120T |
630mm | 3.4 | 3.0 | 80 | 60T/72T/80T/100T/120T |
Diameter | Tips Thickness | Body Thickness | Bore Size | Teeth |
250mm | 2.0 | 1.7/1.75 | 32 | 60T/72T/80T/100T/120T |
285mm | 2.0 | 1.7/1.75 | 32 | 60T/72T/80T/100T/120T |
315mm | 2.25 | 2.0 | 32 | 60T/72T/80T/100T/120T |
360mm | 2.6 | 2.25 | 40 | 60T/72T/80T/100T/120T |
380mm | 2.6 | 2.25 | 40 | 60T/72T/80T/100T/120T |
460mm | 2.7 | 2.25 | 50 | 60T/72T/80T/100T/120T |
485mm | 2.7 | 2.25 | 50 | 60T/72T/80T/100T/120T |
530mm | 3.0 | 2.5 | 50 | 60T/72T/80T/100T/120T |
630mm | 3.4 | 3.0 | 80 | 60T/72T/80T/100T/120T |
